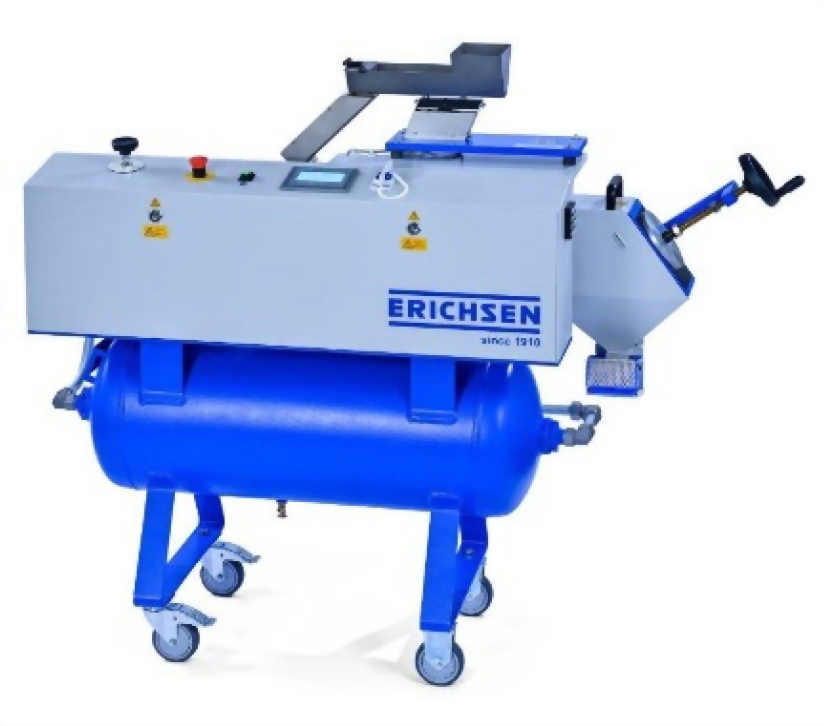

● 產品尺寸: 1150 x 550 x 1350 mm (W x D x H)

● 產品重量: 主機約125kg、VDA模組(手動)約19kg、VDA模組(氣動)約22kg、SAE模組約34kg

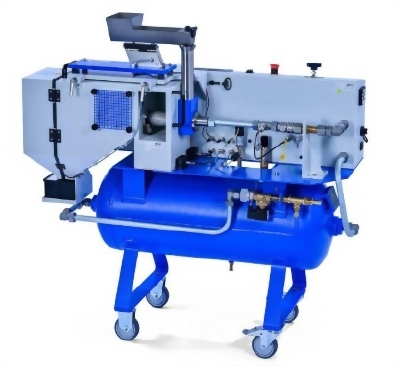

● Compressed air connection:
(VDA) min. 6 bar / max. 10 bar, requires connecting hose with ID 13 mm

(SAE) min. 8 bar / max. 10 bar, requires connecting hose with ID 19 mm, Volume flow: min. 3 m3/min

● Filling pressure control:

approx. 5 bar (VDA), 7.8 bar overpressure (SAE), automatic switching depending on the module

● Working pressure: (0 - 6) bar / adjustable

● Time for feeding shot: adjustable

● Display: Touch Panel

● Power supply: 85-264 VAC / 47-63 Hz (control circuit volt. 24 V)
